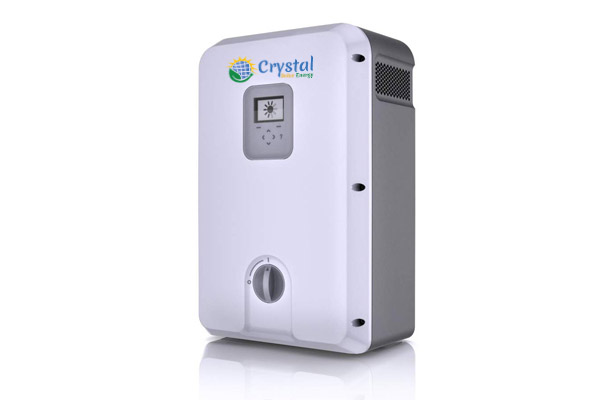

Crystal Solar Energy is a professional manufacturer of single phase power inverter in the industry, used to convert DC electrical power accumulated by the solar panel system into AC electric power to operate variegated electronic appliances at lower cost. This inverter is evolved addressing world’s most advanced MPPT (Maximum Power Point Tracker) technology functions to maximize the energy available from the connected solar module arrays at any time while in use. This inverter is available in different voltage configuration, equipped with temperature LED indicator and overload LED indicator for monitoring, is less intricate, more cost effective, and more reliable solution for residential application, where the average amount of DC to AC conversion is required, Dc to Ac Power Inverter Supplier.
| Capacity | 1 kW | 2 kW | 3 kW | 5 kW | 5 kW | 10 kW | 12 kW | 15 kW | 20 kW | 30 kW | 50 kW | 60 kW |
| INPUT | ||||||||||||
| Max DC input Power | 1150W | 2100W | 3100W | 5200W | 5200 W | 11.5KW | 13.5KW | 16.5KW | 22.5KW | 35KW | 56KW | 67KW |
| 320WMax DC input Voltage/Nominal DC Voltage | 500Vdc/380Vdc | 800V | 1000Vdc /620 VD | |||||||||
| MPPT Voltage Range | 100 ”490Vdc | 200V-800V | 250 950Vdc | |||||||||
| Number of MPPT Tracker | 1 | 2 | 2 | 2 | 3 | |||||||
| Max. input current per Mppt | 11 A | 13 A | 13A/13A | 9A/9A | 13 A/13 A | 21 A/ 21 A | 26A/26A/26A | 36A/36A/36A | 40A/40A/40A | |||
| Strings Per Mppt Tracker | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| OUTPUT | ||||||||||||
| Max. AC output Power | 1000W | 2000W | 3000W | 5OOOW | 5000 W | 10KW | 12KW | 15KW | 20KW | 30KW | 50KW | 60KW |
| Rated output voltage | 230Vac | 400Vac | ||||||||||
| Output voltage range | 155 V - 270 V AC | 280 V - 480 V AC | ||||||||||
| Grid frequency range | 50 (+5 Hz) Adjustable | 50 (+5 Hz) Adjustable | ||||||||||
| Max. output current | 4.5A | 9A | 14A | 22A | 23.7A | 17A | 20A | 24A | 32A | 44A | 72A | 87A |
| Power factor (cos ‹:§) | 1 | 0.8 Leading - 0.8 Lagging | ||||||||||
| Total harmonic current distortion (THD) | <3% | <3% | ||||||||||
| AC Connection | LN+PE | 3W+N+PE/3W+PE | ||||||||||
| FEATURES | ||||||||||||
| Max efficiency | 96.50% | 97.60% | 97.50% | 97.40% | 98.00% | 98.30% | 98.60% | |||||
| DC switch | Optional | Optional | ||||||||||
| Communication interface | RS485 standard, external WiFi or GPRS (optional) | RS485 standard, external WiFi or GPRS (optional) | ||||||||||
| ENVIRONMENTAL | ||||||||||||
| Operating Temperature | -25 °C to + 60°C | -25 °C to + 60°C | ||||||||||
| Humidity Range | 0-95% ( non condensing ) | 0-95% ( non condensing ) | ||||||||||
| Noise level | < 25dB | < 40dB | 1 60dB | |||||||||
| Protection rat1ng | IP65 | IP65 | ||||||||||
| PHYSICAL | ||||||||||||
| Dimension WxHxD (mm) | 264x 326x 127 | 329 x 466 x 149 | 433 x 566 x 195 | 553x715x228 | 636x958x260 | |||||||
| Shipping Weight (kg) | 6Kg | 7Kg | 15.5Kg | 31.1 kg | 35Kg | 39Kg | 61Kg | 68Kg | 70Kg | |||
| STANDARDS | ||||||||||||
| Energy efficiency | IEC 61683 | |||||||||||
| Environmental | IEC 60068 - 2 ( 1, 2, 14, 30 ) | |||||||||||
| IP 65 | IEC 60529 | |||||||||||
| Safety | IEC/EN 62109-1 : 2010, IEC/EN 62109.2 : 2011 AND IEC/EN 50178 : 1998 | |||||||||||
| Ant islanding | IEC 62116 | |||||||||||
| Utility Interface | IEC 61727 | |||||||||||
| EMI/EMC | EN 61000-6-1 : 2007, EN 61000-3-2 : 2006 + AI : 2009 + A2 : 2009, EN 61000-6-3 : 2007 AND EN 61000-3-3 : 2008 | |||||||||||
